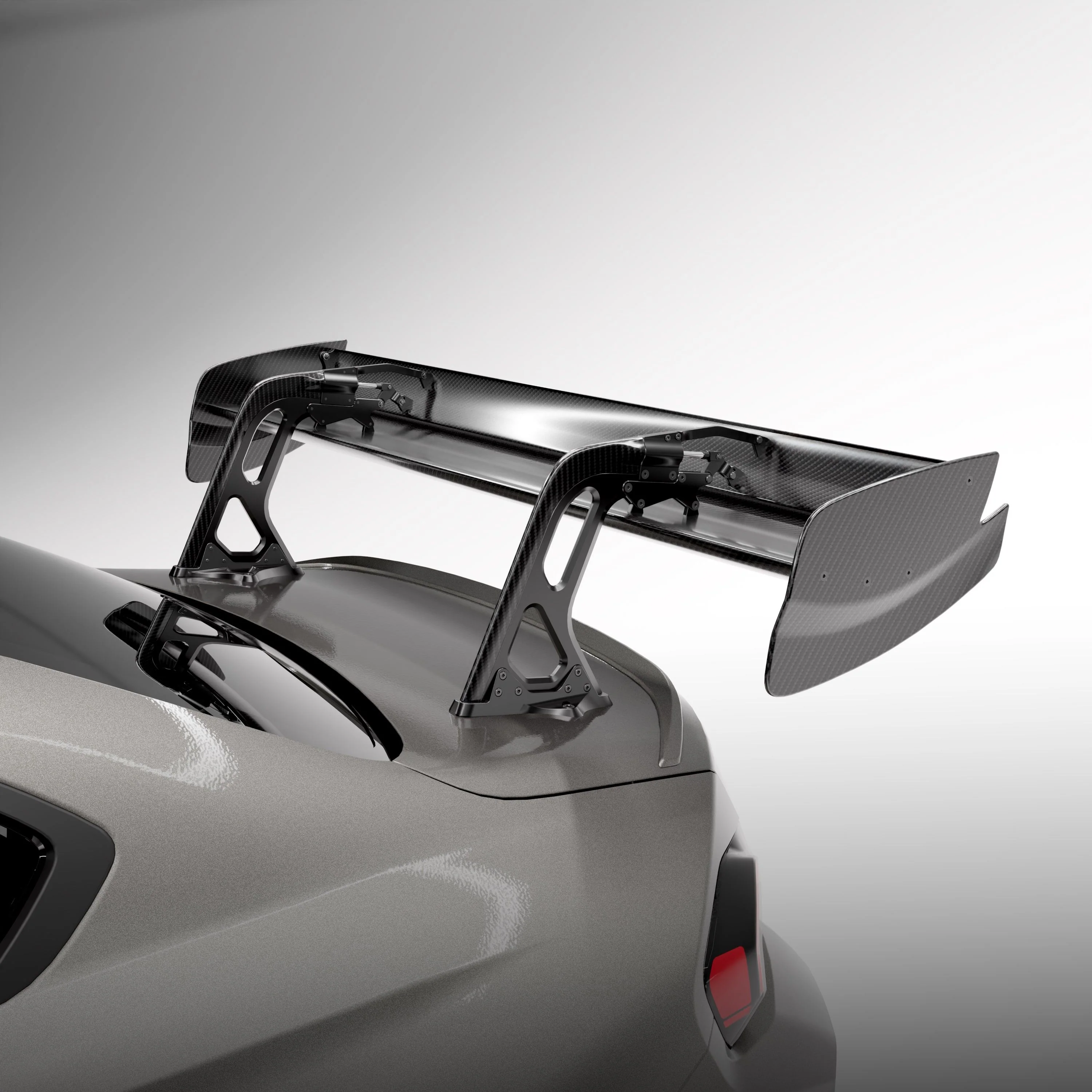

Vulcan Alpha Carbon Fiber Dual Element Wing With DRS - BMW G87 M2

Developed for maximum adaptability, this dual element wing with pneumatic DRS is engineered for the G87 chassis to deliver race-level performance. It provides high downforce for grip and cornering stability, then reduces drag at speed when DRS is activated—allowing faster straights without sacrificing balance through technical sections.

TECHNICAL SPECIFICATIONS

Dual-element prepreg autoclave carbon fiber construction

Chord lengths: 220 mm + 150 mm

Wingspan: 1,610 mm

Swan neck uprights

Chassis-mounted for maximum rigidity

Static main plane with adjustable flap

Pneumatic DRS with 30° actuation range

330 cc air tank and 12V plug-in operation

Drag reduction of nearly 50% at 300 km/h

Aero performance benchmarked against the 992 GT3 RS

Validated through simulation and on-track data

Vehicle Fitment

BMW G87 M2
