ICEX - Intercooler Heat Exchanger

COOL IT.

MODE Design High Capacity OE Replacement B48/B58 Performance Heat Exchanger / Intercoolers are manufactured by leading global intercooler manufacturer for guaranteed quality, reliability and proven performance. Say goodbye to power robbing heat soak and hello to cool gains!

Features a 117% larger radiator volume compared to OEM, alloy end tanks with integrated flow diverters, evo dual-pass design, fully sealed gasket free aluminium construction, and factory like fittings for a direct bolt on installation.

Specs:

• MODE Design Core Size 524mm x 468mm x 68mm ( 2,454cm³)

• vs. OEM Intercooler 576mm x 495mm x 27mm, (2,851cm³)
• Plug & Play Installation using stock plumbing
• Tube & FineDesign for optimal performance and durability
• No cutting or bumper removal required



APPLICATIONS - B48

BMW 2 Series
• 2022+ G42 B48 230i/iX

BMW 3 Series
• 2018+ G20 B48 320i*/325i*/330i/330i (xDrive)/330e/330e (xDrive)
• 2018+ G21 B48 320i*/325i*/330i/330i (xDrive)/330e/330e (xDrive)
• 2018+ G28 B48 320i*/325i*/330i/330i (xDrive)/330e/330e (xDrive)

BMW 3 Series LCI
• 2018+ G20 B48 320i*/320e/330i/330i (xDrive)/330e/330e (xDrive)
• 2018+ G21 B48 320i*/320e/330i/330i (xDrive)/330e/330e (xDrive)
• 2018+ G28 B48 320i*/320e/330i/330i (xDrive)/330e/330e (xDrive)

BMW 4 Series
• 2020+ G22 B48 420i*/425i/430i (xDrive)/430e (xDrive)
• 2020+ G23 B48 420i*/425i/430i (xDrive)/430e (xDrive)
• 2020+ G26 B48 420i*/425i/430i (xDrive)/430e (xDrive)

BMW 4 Series LCI
• 2020+ G22 B48 420i*/420e/430i (xDrive)/430e (xDrive)
• 2020+ G23 B48 420i*/420e/430i (xDrive)/430e (xDrive)
• 2020+ G26 B48 420i*/420e/430i (xDrive)/430e (xDrive)

BMW Z4 Series
• 2018+ G29 B48 30i

APPLICATIONS - B58

BMW 2 Series
• 2022+ G42 B58 M240i (xDrive)

BMW 3 Series
• 2018+ G20 B58 M340i (xDrive)
• 2018+ G21 B58 M340i (xDrive)
• 2018+ G28 B58 M340i (xDrive)

BMW 3 Series LCI
• 2018+ G20 B58 M340i (xDrive)
• 2018+ G21 B58 M340i (xDrive)
• 2018+ G28 B58 M340i (xDrive)

BMW 4 Series
• 2020+ G22 B58 M440i (xDrive)
• 2020+ G23 B58 M440i (xDrive)
• 2020+ G26 B58 M440i (xDrive)

BMW 4 Series LCI
• 2020+ G22 B58 M440i (xDrive)
• 2020+ G23 B58 M440i (xDrive)
• 2020+ G26 B58 M440i (xDrive)

BMW Z4 Series
• 2018+ G29 B58 M40i

*Please note: This does not apply to vehicles fitted with the B48C engine that don’t have an intake manifold with an integrated intercooler — for example, 320i B48C, 320iX B48C, 325i B48C, 420i B48C, 420iX B48C and 425i B48C models.

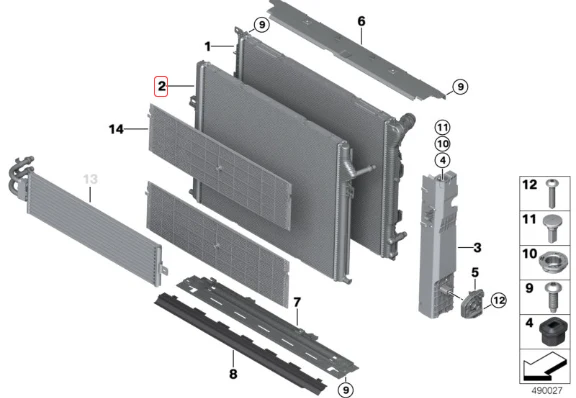

Replaces Air Radiator Cooler OEM BMW part #17118666811
