PODIUM Line Product Overview

Introducing the revolutionary JQ Werks Madtrace® PODIUM Line Racing Steering Wheel System for HONDA FK8/FL5 Chassis, engineered to take your racing experience to the next level with unmatched response, seamless factory integration, and complete driver control. As the first system in the industry to combine both CAN bus and LIN bus technologies in a single hub, it ensures flawless communication with your factory electronics. No splicing, no wiring headaches, just true plug and play functionality. Designed for simplicity and performance, the PODIUM Line delivers a fully wireless experience that eliminates clutter while keeping your cockpit clean and efficient.

PODIUM Line Materials

Built from 6061-T6 billet aluminum and precision machined with 5-axis CNC technology, the PODIUM Line system delivers a perfect fit and premium feel. Finished in sleek black anodizing, it pairs seamlessly with our matching adapter hub and quick release, both made from the same 6061-T6 aluminum for exceptional strength, durability, and reliability. Built to perform. Made to last.

PODIUM Line CAN Bus Integration Feature

This feature is exclusive to the PODIUM and FORMULA Line, providing the driver with access to over 20 additional functions (chassis dependent) beyond the factory steering wheel functions. Drivers can operate high beam flash, wipers, turn signals, shift lights, TC adjustment, and much more, all from a single, fully integrated system. It’s the ultimate all in one solution, keeping every critical function right at your fingertips.

PODIUM Line MadtraceLAB 1.0 Feature

The PODIUM Line delivers complete control with a fully customizable button layout, configured through MadtraceLAB or the optional DID. Every update, adjustment, and upgrade can be managed directly through MadtraceLAB, keeping the system always up to date. A discreet USB‑C port future proofs the hub, enabling seamless updates, feature expansions all in one advanced, integrated platform.

PODIUM Line Multi Profile Settings Feature with Button Layout Mapping Configuration

A key highlight of the PODIUM Line system is its Profile Settings and Button Layout Mapping. Whether you’re dialing in for changing track conditions, personal driving preferences, or even swapping the system between cars, you can store up to three fully customizable profiles directly in the hub’s internal memory for instant recall. With access to over 20 OEM CAN bus functions, every command can be mapped seamlessly across the eight front facing buttons and dual joystick knobs, putting complete control at your fingertips.

(Example: Profile One For G87 M2 might include M1, M2, Cruise Control SET/RES, Bluetooth, and Cluster Menu, all with white backlighting. Profile Two For GT4RS might include Front Axle Lift, ESP+TC OFF, Turn Signal, Wiper, PDK SPORT, and PSE, all in red.)

PODIUM Line Button Profile Switch Functionality

To give drivers quick adaptability, we designed the Layout Switch Function. With a simple press of a discreet rear mounted switch, you can instantly swap between your saved button maps and LED profiles on the fly.

(Example, Layout One can be changed to Layout Two with a single press of the button.)

PODIUM Line RevLEDs CAN bus Shift Light

The PODIUM Line system comes exclusively with RevLEDs CAN bus shift lights, providing the driver with an instant, zero delay shifting and track experience. All the lights flash red when the engine reaches redline.

PODIUM Line Optional OLED Driver Information Display (DID)

Every PODIUM Line system comes with a standard horn cap. For those who want more functionality, we’ve designed an optional OLED Driver Information Display (DID) that simply replaces the standard horn cap. This display allows the driver to see telemetry data such as real time speed thanks to our integrated CAN bus support. Our DID system also enables on the fly button layout mapping and profile switching, eliminating the need to connect the hub to a computer for MadtraceLAB programming. Additionally, the DID lets the driver adjust both display brightness and RGB customizable button colors for a fully personalized experience.

PODIUM Line Optional Dual-Paddle Functionality

For the first time ever in a racing steering wheel system designed for OEM vehicles, we’ve engineered a motorsport grade dual paddle setup made from 6061-T6 billet aluminum, giving drivers more control than ever before. All four paddles are fully programmable, allowing users to assign any function they need, not just shifting.

This system also supports manual transmission vehicles, so even MT drivers can take advantage of customizable paddle functions.

(Example: Upper paddles can be set to control turn signals, while the lower paddles handle gear shifting.)

IMPORTANT NOTES:

Please be aware that the JQ Werks Madtrace® Racing Steering Wheel System is ONLY DESIGNED FOR OFF-ROAD, TRACK USE, RACING, AND COMPETITION PURPOSES, NOT FOR ANY TYPE OF STREET USE.Consequently, we cannot guarantee that the JQ Werks Madtrace® Racing Steering Wheel System complies with local government laws and regulations regarding required vehicle safety equipment. Moreover, it is strictly prohibited to install this system on any motor vehicle subject to state safety inspection.

It is of utmost importance to understand that our Racing Steering Wheel is solid, which could result in bodily injury in the event of a car accident. For this reason, removing the factory airbag poses a significant safety risk and should never be attempted while utilizing factory 3-point seat belts. Instead, we strongly require our customers to use 6-point racing harnesses with racing roll-bar for off-road use to ensure their safety.

Please note that these considerations may vary depending on the country or region you operate in. It's always best to consult with legal professionals who are familiar with the laws and regulations in your specific area and industry to ensure you are fully compliant with all relevant legal requirements.

Included in Kit

Each PODIUM Line Racing Steering System Hub Kit Includes:

1x PODIUM Line Control Hub Unit

1x Quick Release Base with Integrated Chassis PCB

1x CAN bus Integration Module

1x Harness Kit

1x Resister

1x Adapter Hub

1x Adapter Hub Locking Wrench

1x Trim Removal Tool

1x Hardware Kit

1x Allen Key

1x Button Stickers

1x JQ Werks / Madtrace Stickers

Vehicle Fitment

Applicable Models:

HONDA CIVIC Chassis

CIVIC TYPE R | FK8/FL5

Accord 7th Gen CL (2002-2008)

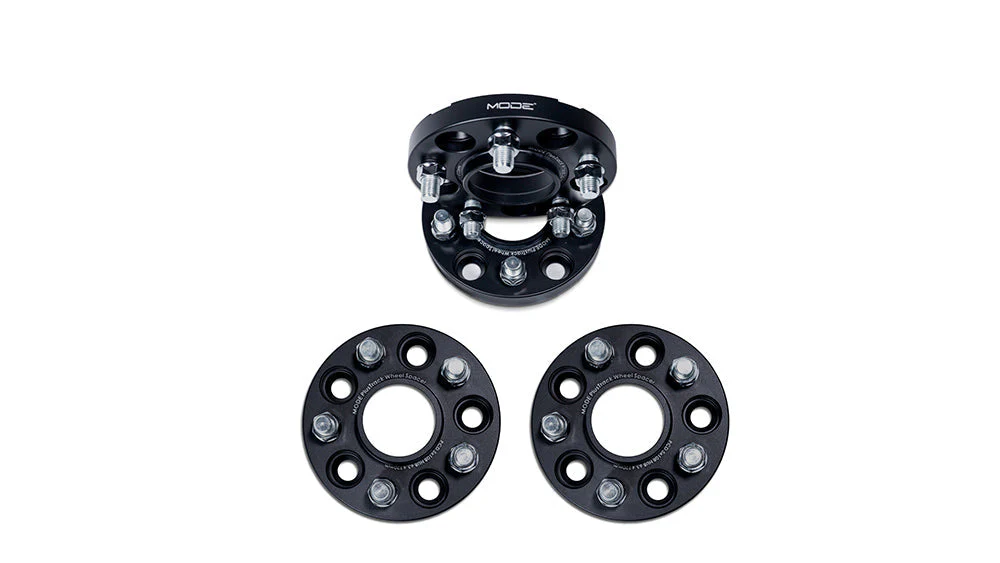

MODE PlusTrack Wheel Spacer Flush Fit Kit for Honda Civic Type R FK2 FK8 FL5 (2015-present)
